品牌：藍江/LAND
材料：尼龍/Nylon
防水：IP68
環保：ROHS
性能：外形美觀，螺紋精密，內外絲結構設計，用于格蘭螺紋相互轉換

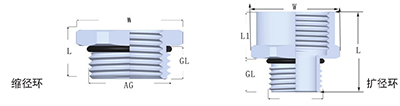

藍江產品型號 | 螺紋規格/Thread size | 產品尺寸 / Product size | 包裝 | |||
Product model | 外螺紋 | 內螺紋 | AG | GL | L | packing |
PN. | M thread | F thread | φ mm | φ mm | mm | Pcs/bag |
M16-M12 | M16×1.5 | M12×1.5 | 16 | 9 | 15 | 50 |
M20-M12 | M20×1.5 | M12×1.5 | 20 | 9 | 15 | 50 |
M20-M16 | M20×1.5 | M16×1.5 | 20 | 9 | 15 | 50 |
M20-PG9 | M20×1.5 | PG9 | 20 | 9 | 15 | 50 |
M20-PG11 | M20×1.5 | PG11 | 20 | 8 | 22 | 50 |
M25-M20 | M25×1.5 | M20×1.5 | 25 | 9.5 | 26 | 50 |
M27-M16 | M27×2.0 | M16×1.5 | 27 | 9 | 15 | 50 |
M30-M16 | M30×2.0 | M16×1.5 | 30 | 14.5 | 24.5 | 50 |
M32-M20 | M32×1.5 | M20×1.5 | 32 | 11.5 | 17 | 50 |
M36-M32 | M36×2.0 | M32×1.5 | 36 | 11.5 | 17.5 | 50 |
M40-M25 | M40×1.5 | M25×1.5 | 40 | 11 | 17 | 20 |
M40-M32 | M40×1.5 | M32×1.5 | 40 | 11 | 17 | 20 |
M50-M40 | M50×1.5 | M40×1.5 | 50 | 15 | 20 | 10 |
M50-M32 | M50×1.5 | M32×1.5 | 50 | 15 | 20 | 10 |
M63-M50 | M63×1.5 | M50×1.5 | 63 | 15 | 20 | 10 |
PG11-PG9 | PG11 | PG9 | 18.6 | 9 | 15 | 50 |
PG13.5-PG9 | PG13.5 | PG9 | 20.5 | 9 | 15 | 50 |
PG13.5-PG11 | PG13.5 | PG11 | 20.5 | 9 | 15 | 50 |
PG16-PG11 | PG16 | PG11 | 22.5 | 10 | 27 | 50 |
PG16-PG13.5 | PG16 | PG13.5 | 22.5 | 10 | 27 | 50 |
PG16-M16 | PG16 | M16×1.5 | 22.5 | 10 | 7 | 50 |
PG21-PG16 | PG21 | PG16 | 28.3 | 11 | 17 | 50 |
PG29-PG21 | PG29 | PG21 | 37 | 11 | 17 | 50 |
